Easy clean sash windows

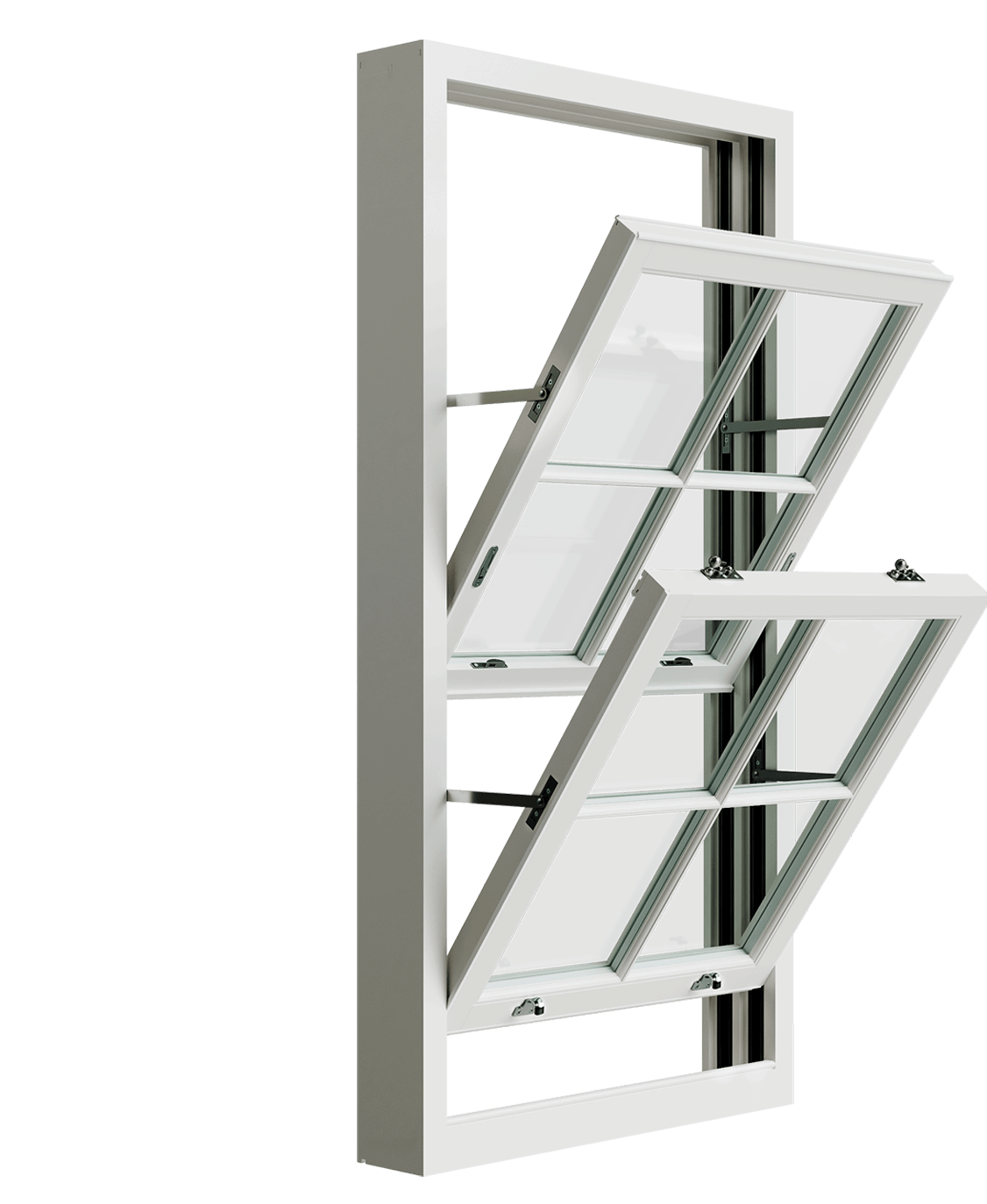

Traditional sash easy clean (or tilt and slide) windows are popular for building restoration and development projects, especially where access is tough. The top of each frame tilts by 50 degrees, and slides inwards. When open to their full capacity, the panes and frames can easily be cleaned from inside your property.

Traditional sash easy clean (or tilt and slide) windows are popular for building restoration and development projects, especially where access is tough. The top of each frame tilts by 50 degrees, and slides inwards. When open to their full capacity, the panes and frames can easily be cleaned from inside your property.

As with TRC traditional sash windows, tilt and slide sash windows are designed to ensure the highest level of weather performance and insulation. Tested for acoustic, thermal and weather containment, they are also compliant to PAS24, and are Secured by Design approved.

No matter what style of property you have, TRC easy clean sash windows will always be a high-quality addition.

Specifications

Downloads Downloads
Traditional Sash Easy Clean Windows – Single
PDF CAD REVIT IFC
Traditional Sash Easy Clean Windows – Double
REVIT IFC
Product guidance - as standard
Frame
55 x 160 mm (lining width x frame depth), manufactured using mortise and tenon joints, glued and mechanically fixed.
Sash
55 x 55 mm top rail and stiles, 90 x 55 mm bottom rail, 56 x 55 mm meeting rail.
Mullion/transom
140 mm wide.
Sill projection
35 mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm.
Staff / parting beads
Timber.
Wood moisture content
12-19%.
Glazing beads
Internally beaded.
Product specification
Material
Frame+Sashes Engineered redwood, Bottom Cill in Solid Hardwood - Standard. Engineered hardwood, Accoya, European oak.
Finish
Three coat spray applied factory finish using water based micro-porouspaint/ stain.
Colour
White - RAL 9016 - Standard. Any RAL - from RAL classic range. Stain - from TRC stain range.
Glazing
Double glazed, 4/16/4 Low-E top sash – 4toughened/16/4 toughened bottom sash - Standard, Ug-value: 1.1 W/m²K; g-value: 0.52;U-value: 1.5 W/m²K - double glazed.
U-value
1.5 W/m²K - double glazed.
Perimeter spacer bars
White warm edge perimeter spacer with white warm edge integral spacers - Standard. Silver and Black spacer optional.
Frame profile moulding
Ovolo 1, Ovolo 2, Lambs Tongue 1, Lambs Tongue 2.
Trickle ventilation
Concealed through frame head trickle ventilator. EA 1700, 4400, 5000 mm².
Child restrictor
Angel lock standard. Traditional Sash Stop optional.
Security
Can conform to PAS 24.
Glazing Bars
Applied 18 & 22mm glazing bars to external faces of double glazed unit
Downloads Downloads
Traditional Sash Easy Clean Windows – Single
PDF CAD REVIT IFC
Traditional Sash Easy Clean Windows – Double
REVIT IFC

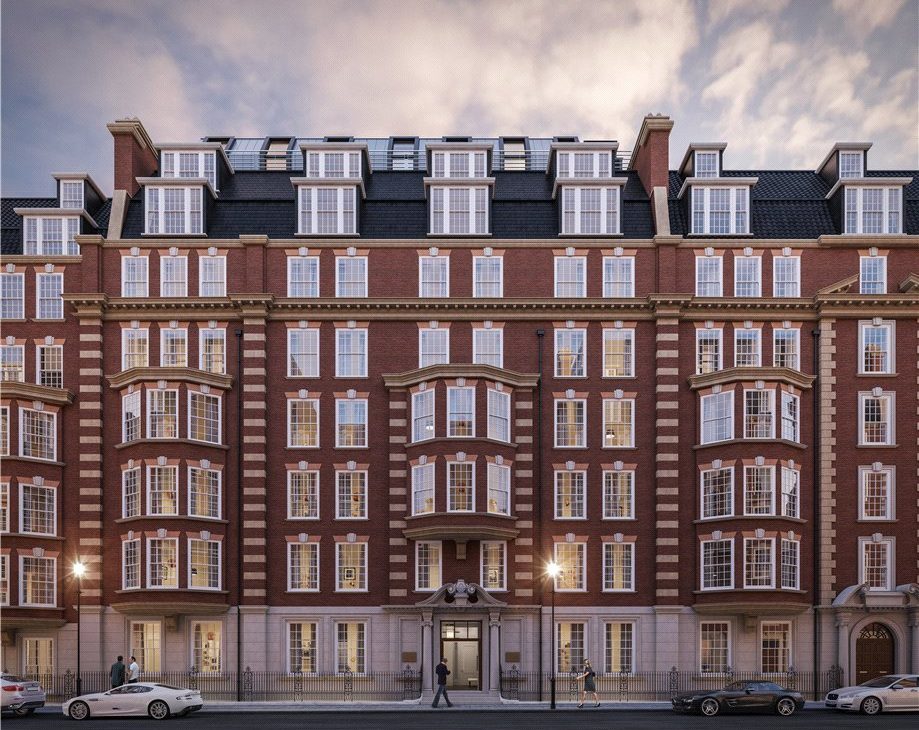

Grosvenor House
Grosvenor House
Side
Grosvenor House
Grosvenor House
Side

Digging into
the details …

TRC traditional sash easy clean windows are available as hardwood or softwood frames, with RAL finishes, and four glazing options:

  • safety
  • obscured
  • acoustics
  • solar control

The high-quality paint and stain finishes provide excellent protection for 10 and six years respectively, against blistering or flaking. This ensures the timber is protected for many years to come.

Tilt and slide easy clean windows are available with traditional sash window details, including double-glazing, heritage-style double-glazing or triple-glazing, with the option of external sash horns and horizontal glazing bars. Ironmongery can include sash locks, tilt button, hook lifts and sash stops.
